- Share Broadband Internet access from your 3G / 3.75G USB modem
- Wireless data rate of up to 150Mbps* with IEEE 802.11n
- Supports HSxPA, EVDO, WCDMA Mobile Internet Service
- Intelligent wireless power saving technology
- Advanced NAT+SPI firewall provides fully protection for your wireless connection

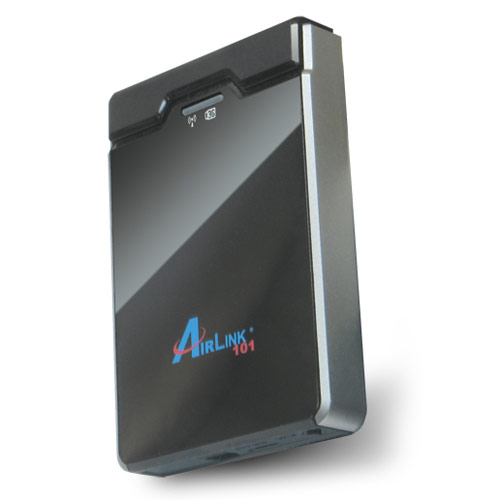

With the Airlink101® AR550W3G you can now share wireless Internet connectivity wherever your Mobile Internet Service is available. It also shares Broadband Internet access from either your 3G / 3.75G or Cable / DSL modem.
Specifications
| Frequency Band |
2.4GHz |
| Standards |
IEEE 802.11b / g / n |
| Antenna type |
1 PIFA Internal Antenna |
| WAN Type |
3G/3.75G (WCDMA,HSDPA,HSUPA, CDMA2000,EV-DO)
PPPoE (for iBurst)
HotSpot Client |
| Security |
WPA / WPA2-PSK
WEP 64 / 128bit |
| Interface |
3G USB adapter slot
Reset / WPS Button
Power Switch On/Off
Mini USB Power Jack |
| Data Rate |
Up to 150Mbps* |
| Dimensions |
93 x 65 x 17mm (L x W x H) |
| LEDs |
3G (USB)
Wireless |
| Output Power |
11n/g: 14dBm
11b: 17dBm |
| Advanced Features |
MAC Control
NAT+SPI Firewall
Multi-lingual UI: English, Spanish, Chinese, and German |
| Power |
5V / 2A Switching Mini USB Type Power Adapter |
| Dimensions |
102 x 68 x 14mm (L x W x H) |
| Temperature |
Operating: 0°C to 40°C (32°F ~ 104°F)
Storage: -10?C to 70?C (-14°F ~ 158°F) |
| Humidity |
Operating:10%~90% non-condensing
Storage: 0% to 95% Non-Condensing |
| Certification |
FCC, CE |
| Warranty |
1-year limited warranty |
System Requirements:
- Windows®, Mac®, or Linux® Operating System
- Internet Explore 5.5 or Above
- Installed 2.4GHz Wireless b/g/n adapter
Package Contents:
- Wireless N 150 3G / 3.75G Travel Router
- Setup CD
- Quick Installation Guide
- Power Adapter
- USB Cable (For Power)
|
